Clefs Moire

Submitted by Radlab

0

Client: One North of Boston

Location: Chelsea, MA, United States

Completion date: 2014

Artwork budget: $50,000

Project Team

Architect

Matthew Trimble

Radlab

Other

Steve Listwon, Bob Williamson

Radlab

Other

Ellen Ellerbee, Ethan Zison, Haik Tokatlyan

Radlab

Industry Resource

Paul Kassabian

SGH

Other

Roxana Perdue, Karen Jann, Jared Steinmark

Radlab

Overview

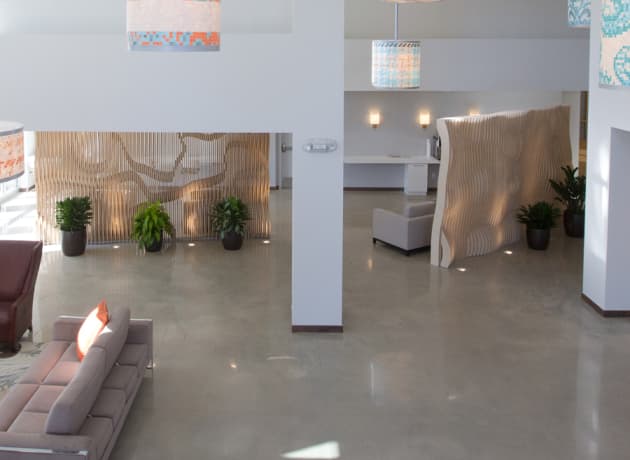

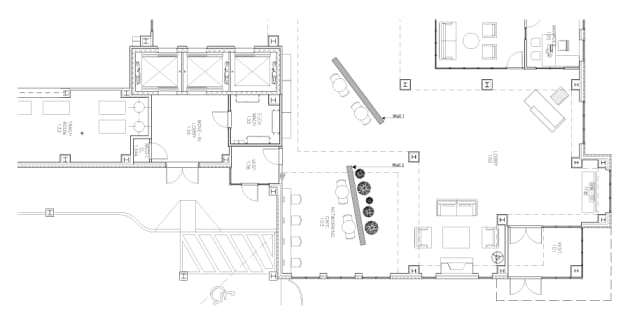

With the provision of a casual description and partial floor plan of the residential building's lobby and adjacent networking cafe, Radlab was asked to create an interior installation composed of two slatted walls. Knowing the dimensional constraints of the walls (8’ tall x 14’ long), our design strategy began with a preoccupation in the role of a wall as an architectural tool, fully circumscribed by open, public space, yet capable of creating moments of privacy.

Goals

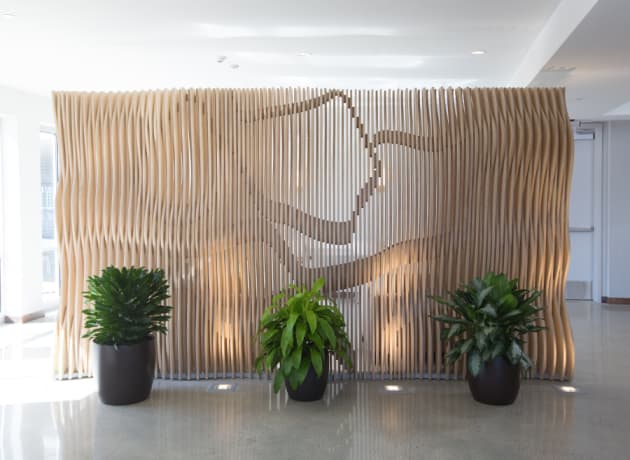

In an effort to explore this public/private dynamic, we began looking at the effects of moiré patterning in volumetric configurations. In order to achieve a compelling moiré it became clear that each of the two walls would essentially be defined by two interpenetrating volumes, segmented into vertical ribbing. It seemed fitting, then, to first combine the walls, and view them as one continuous partition that would be separated only after completion of the design.

A piece of music came to mind which proved useful in organizing the rhythms of each of the two volumes. Partita No. 1 in B-flat major: Gigue, by J.S. Bach, was written for harpsichord, and interestingly requires the performer to cross their hands, breaking out of the standard notation that positions the left hand in the bass clef and the right hand in the treble clef. The notion of this melodic crossing back and forth led to a sinuous geometric composition between bass and treble, informing the plan and sectional qualities of each volume according to their wavelengths.

Process

Radlab served as artist, designer, and fabricator for this project.
