Spiral Stair

Submitted by Martin Eichinger

0

Client: The Geode

Location: Portland, OR, United States

Completion date: Jan 01, Array

Artwork budget: $110,000

Project Team

Artist

Martin Eichinger

Eichinger Sculpture Studio

Industry Resource

Matt Scheick

MEZR

Industry Resource

Tim Burns

MEZR

Artist

Jason Johnston

Jason Johnston

Artist

Chas Martin

Chas Martin

Artist

Dave Gonzo

Gonzo Metal Sculpture

Overview

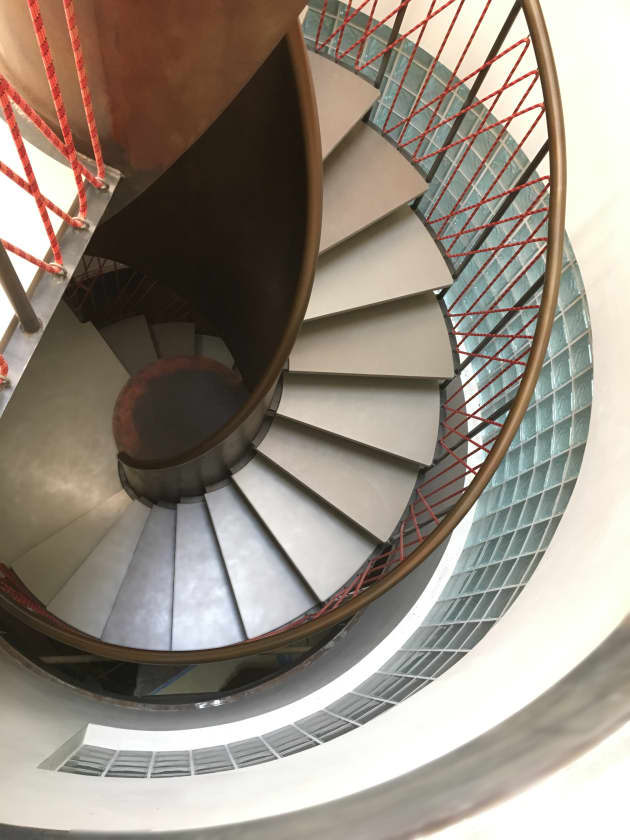

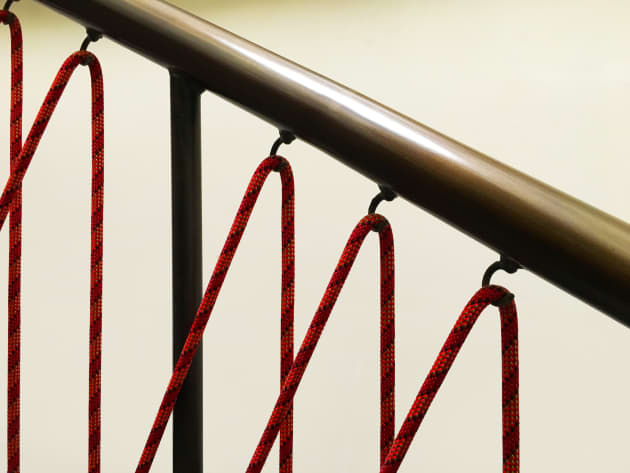

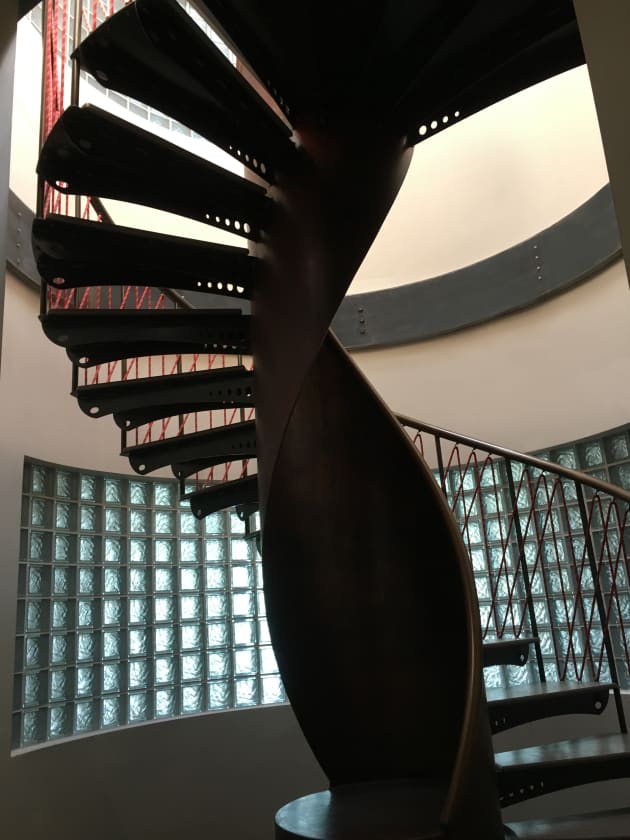

Three-story steel spiral stair with spiral steel tube railing and climbing rope in place of traditional balusters.18 Approximately 32' tall by 9.5' wide with nearly 900' of climbing rope. Finish is a bronze patina.

Goals

The Geode is a mixed use office/residence/studio space. Light is a major element of the interior and exterior features of the building. Skylights illuminate interior conference rooms and residential spaces. The spiral stair reflects the owner's love for rock climbing and also helps transmit light from the 3rd floor skylight to the first floor.

Process

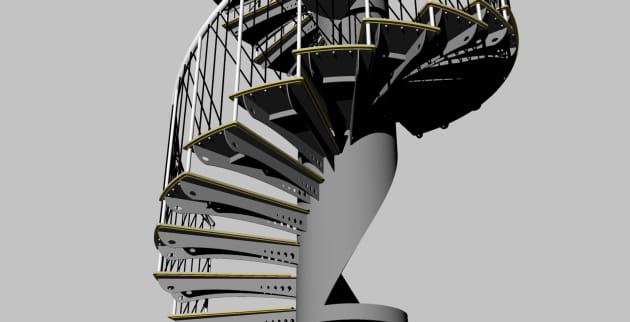

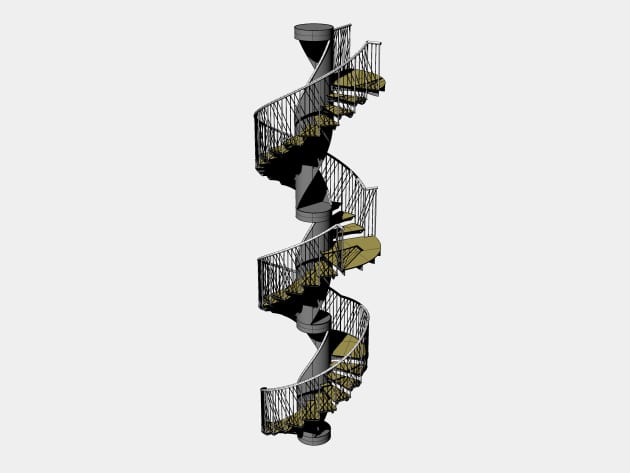

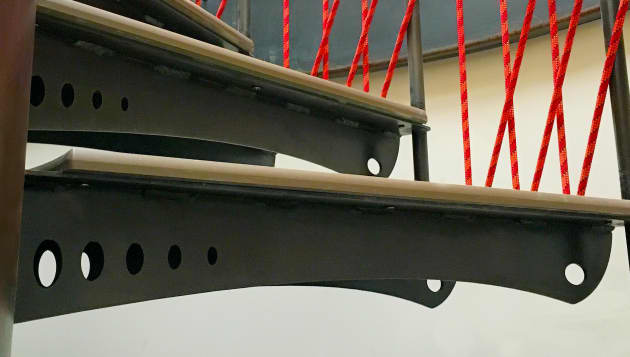

The initial design was converted into CAD files by the fabricator. After cutting a precise spiral from 1/2" thick steel pipe, the entire piece was lifted into place. Each stair, fabricated with a CNC router A team of welders meticulously placed each stair support and tread.

Additional Information

The stair was conceived years ago when the building was first acquired. With the recent addition of the two upper floors, technology became a significant component of the process. The concept was converted into templates for stair supports and treads, railing. Precision was essential for treads to align with each floor landing was
